Huaxu Energy manufactures small and medium size solar panels to generate sustainable power for your portable electric power and battery charging applications.

Incorporating epoxy resin encapsulated solar cells, PET laminated solar cells and folding solar cells, the power packs will provide an excellent choice for applications that require lightweight, flexible, durable, clean power.

With more than 10 years experience, we deeply understand what customer’s requirements.

Huaxu Energy will be always you RELIABLE supplier of solar panels.
·PET solar panel
·Epoxy solar panel
·Glass solar panel
·ETFE solar panel
·Flexible solar panel
4V 80mA solar cell

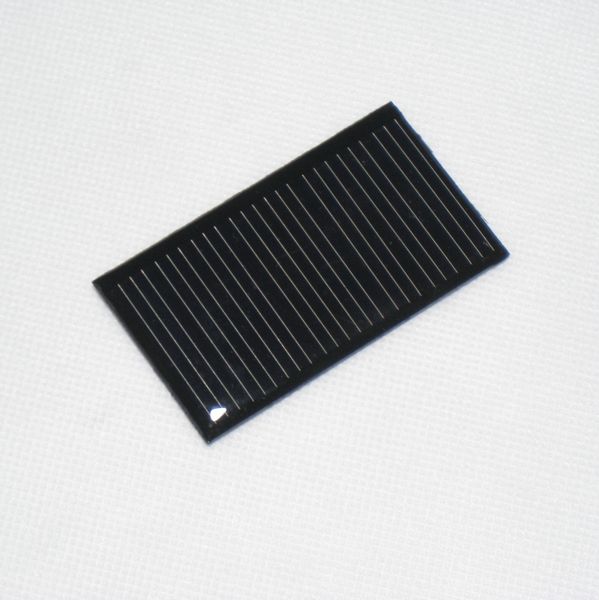

4V 80mA Epoxy Resin Solar Panel

  • Model: HX40-70E
  • Monocrystalline Solar Cell
  • Peak Voltage (Vmp): 4V
  • Open Circuit Voltage (Voc): 4.8V
  • Peak Current (Imp): 80mA
  • Short Circuit Current (Isc): 90mA
  • Dimensions: 40mm x 70mm x 2.5mm (LxWxD)

This low power solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy coating panel have three layers,

*Epoxy resin * Solar cell *PCB

It is more suitable for solar toys, solar lawn lights.
epoxy resin solar cell

Low voltage epoxy resin solar cells are ideal for OEM, project development, hobbyists and school project.

Processing: Epoxy resin sealed

Application: Epoxy resin solar panel are widely used in solar toys, solar lawn light, solar torch, solar flashlight, and other solar powered items.

"To be your RELIABLE solar panel supplier"
