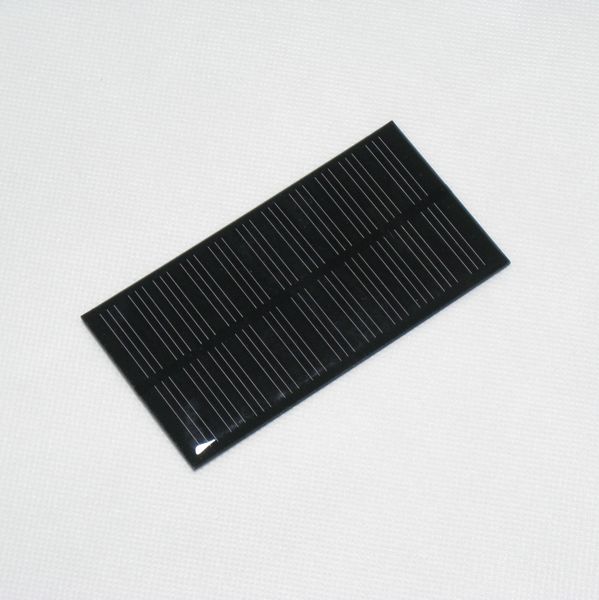

5.5V 90mA epoxy resin encapsulated solar panel
- Model: HX107-94E
- Polycrystalline Blue Solar Cell
- Peak Voltage (Vmp): 5.5V
- Open Circuit Voltage (Voc): 6.5V
- Peak Current (Imp): 90mA
- Short Circuit Current (Isc): 100mA
- Dimensions: 107 x 56 x 2.8mm(LxWxD)
Professional epoxy encapsulated solar panels solution offering.
Huaxu Energy is specialized in production of custom-made epoxy encapsulated solar panel, PET laminating solar panels. We offers a widely range of low power epoxy resin encapsulated solar panel which sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy coating panel have three layers,
1. Epoxy resin
2. Solar cell(mono crystalline & poly crystalline)
3. PCB
It is more suitable for solar toys, solar lights.
|
