Huaxu Energy manufactures small and medium size solar panels to generate sustainable power for your portable electric power and battery charging applications.

Incorporating epoxy resin encapsulated solar cells, PET laminated solar cells and folding solar cells, the power packs will provide an excellent choice for applications that require lightweight, flexible, durable, clean power.

With more than 10 years experience, we deeply understand what customer’s requirements.

Huaxu Energy will be always you RELIABLE supplier of solar panels.

·PET solar panel
·Epoxy solar panel
·Glass solar panel
·ETFE solar panel
·Flexible solar panel

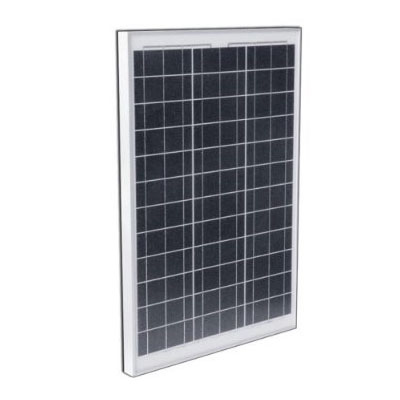

50W 18V Solar panel

50W solar panel Huaxu Energy

50W polycrystalline solar panel

Model HX-50(Poly) 50W SOLAR PANEL
Encapsulation Glass/EVA/Cells/EVA/TPT
Size&Number of cells 156mm×59mm 36pcs(3×12pcs)
Maximum power(  Wp) 50Wp
Maximum power voltage(Vmp) 18.00V
Maximum power current(Imp) 2.78A
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 3.04A
Model size(mm) 765*535*35 mm
Weight(Kg 6.0Kg
Nominal Operating Cell Temperature(NOCT)

48°C to ±  2°C

"To be your RELIABLE solar panel supplier"
