2V 500mA solar panel
2V epoxy resin solar panel

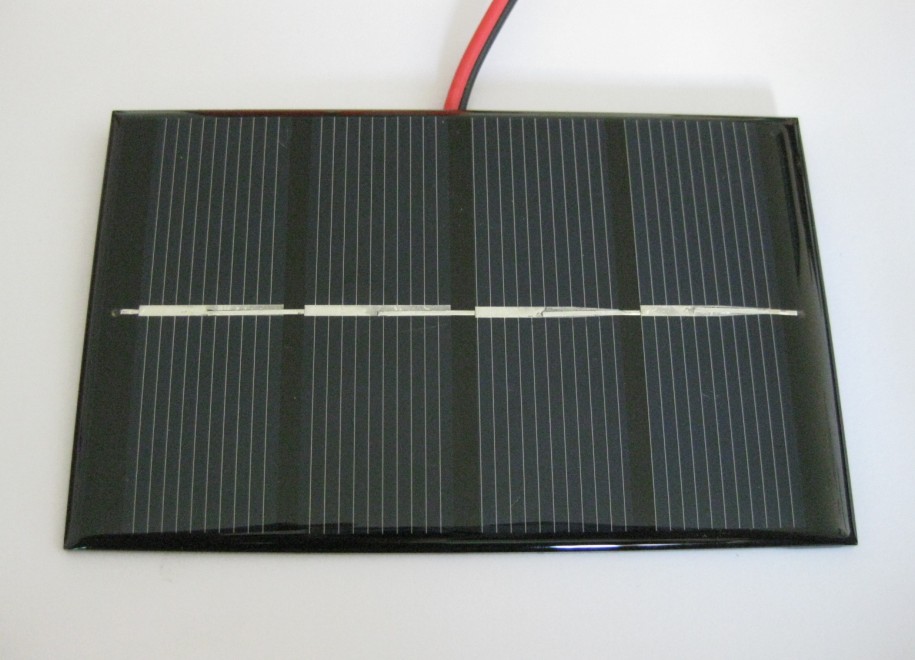

2V 500mA Epoxy resin solar panel

*Model: HX120-70E

*Polycrystalline Blue Solar Cell

*Peak Voltage (Vmp): 2V

*Open Circuit Voltage (Voc): 2.4V

*Peak Current (Imp): 500mA

*Short Circuit Current (Isc): 550mA

*Dimensions: 120mm x 70mm x 2.8mm (LxWxD)


There is traditional type low power mini solar panel called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy sealed solar panel have three layers as following,

1. Epoxy resin
2. Solar cell
3. PCB
Epoxy reisn coated solar panel looks attractive and it is very popular used in solar toys, solar education kits.
