1.5V 500mA solar cell

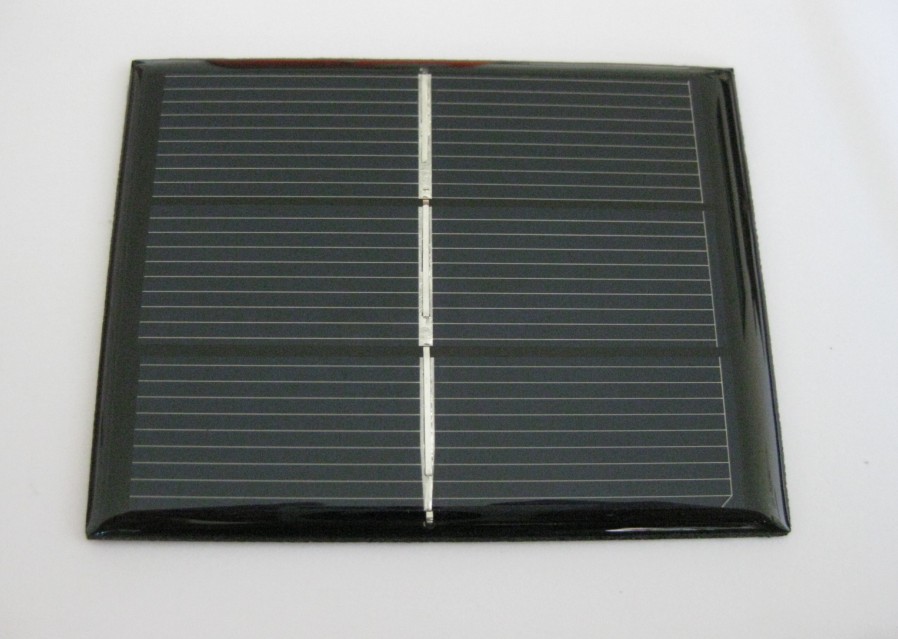

1.5V 500mA Epoxy resin solar panel

1.5V 500mA Epoxy resin solar cell

Model  HX90-70E
Nominal Peak  Power(W)  0.75W
Maximum Power Voltage(Vmp)  1.5V
Maximum Power Current(Imp)  500mA
Short Circuit Current(Isc)  525mA
Open  Circuit Voltage (Voc)  1.8V
Optimized Cell   Efficiency (ƞ)  20%
Power Tolerance  ±5%
Dimensions  90x70x2.8MM

It is a traditional type low power solar panel called epoxy resin encapsulated solar cell, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy coating panel have three layers,

1. Epoxy resin
2. Solar cell
3. PCB
It is more suitable for solar toys, solar education kits.
