Huaxu Energy Technology Co.,Ltd

Huaxu Energy manufactures small and medium size solar panels to generate sustainable power for your portable electric power and battery charging applications.

Incorporating epoxy resin encapsulated solar cells, PET laminated solar cells and folding solar cells, the power packs will provide an excellent choice for applications that require lightweight, flexible, durable, clean power.

With more than 10 years experience, we deeply understand what customer’s requirements.

Huaxu Energy will be always you RELIABLE supplier of solar panels.

·PET solar panel
·Epoxy solar panel
·Glass solar panel
·ETFE solar panel
·Flexible solar panel

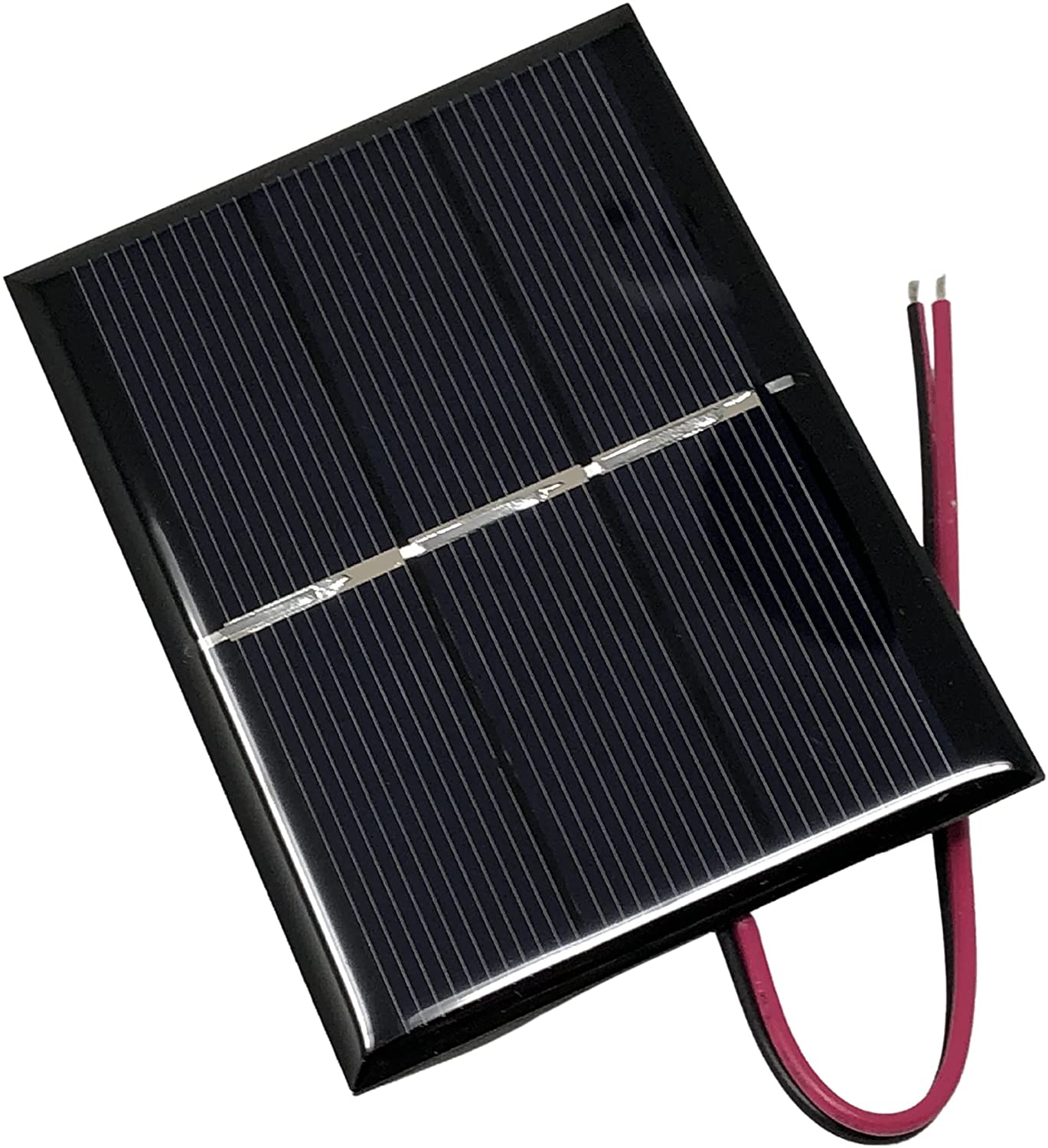

1.5V 400mA solar cell

1.5V 400mA solar cell for solar educational kits

Model	HX80-60E
Nominal Peak Power(W)	0.6W
Maximum Power Voltage(Vmp)	1.5V
Maximum Power Current(Imp)	400mA
Short Circuit Current(Isc)	420mA
Open Circuit Voltage (Voc)	1.8V
Optimized Cell Efficiency (ƞ)	20%
Power Tolerance	±5%
Dimensions	80x60x2.8MM

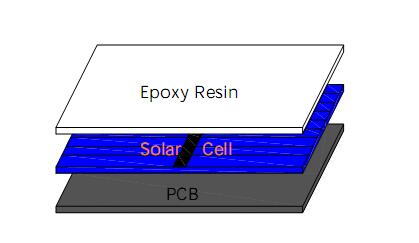

It is a traditional type small solar module called epoxy resin encapsulated solar panel, which is sticked together by epoxy resin glue at a temperature 50~60 degree, you will see the epoxy resin coated panel have three layers,

1. Epoxy resin

2. Solar cell

3. PCB

It is suitable for solar toys, solar education kits.

"To be your RELIABLE solar panel supplier"
