Huaxu Energy manufactures small and medium size solar panels to generate sustainable power for your portable electric power and battery charging applications.

Incorporating epoxy resin encapsulated solar cells, PET laminated solar cells and folding solar cells, the power packs will provide an excellent choice for applications that require lightweight, flexible, durable, clean power.

With more than 10 years experience, we deeply understand what customer’s requirements.

Huaxu Energy will be always you RELIABLE supplier of solar panels.
·PET solar panel
·Epoxy solar panel
·Glass solar panel
·ETFE solar panel
·Flexible solar panel

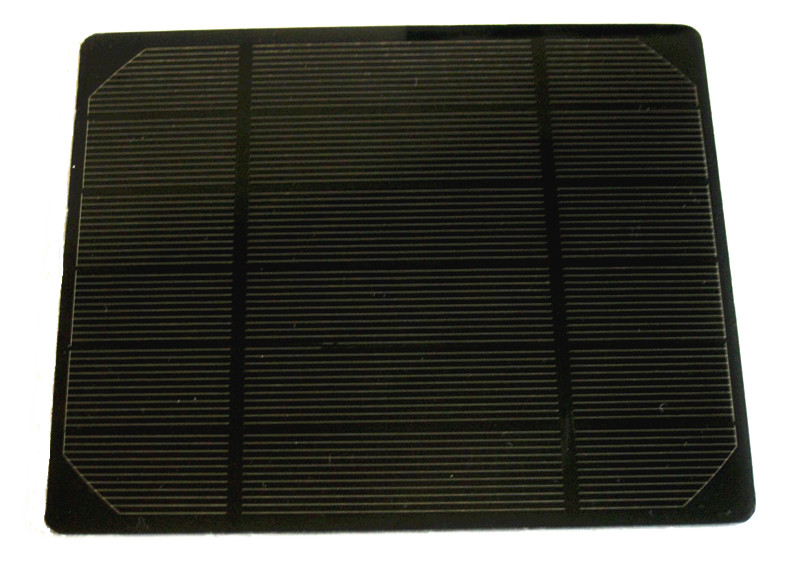

3V 1A solar panel

3W/3V PET laminated solar panel,
UV resistance & Scratch resistance small solar panel

Model  HX160-130P
Nominal Peak  Power(W)  3W
Maximum Power Voltage(Vmp)  3V
Maximum Power Current(Imp)  1000mA
Short Circuit Current(Isc)  1050mA
Open  Circuit Voltage (Voc)  3.6V
Optimized Cell   Efficiency (ƞ)  20%
Power Tolerance  ±5%
Dimensions  160x130x2.8MM


Highlights:
*UV resistance solar panel
*Humidity resistance
*Scratch resistance
*Consistent textured surface
*Attractive appearance

Low voltage PET laminated solar panel consisting of PET, EVAs, Solar cell and FR-4-PCB, it is laminated by machine at a temperature of 135 degree, then all the material will be melted together.Life time of PET laminated solar cell will be more than 3 years, it is waterproof and resistant to all outdoor conditions,suitable for solar outdoor lights, solar education kits.
