Huaxu Energy manufactures small and medium size solar panels to generate sustainable power for your portable electric power and battery charging applications.

Incorporating epoxy resin encapsulated solar cells, PET laminated solar cells and folding solar cells, the power packs will provide an excellent choice for applications that require lightweight, flexible, durable, clean power.

With more than 10 years experience, we deeply understand what customer’s requirements.

Huaxu Energy will be always you RELIABLE supplier of solar panels.
·PET solar panel
·Epoxy solar panel
·Glass solar panel
·ETFE solar panel
·Flexible solar panel
4V 120mA solar panel

4V 120mA solar panel

Model  HX60-60P
Nominal Peak  Power(W)  0.48W
Maximum Power Voltage(Vmp)  4V
Maximum Power Current(Imp)  120mA
Short Circuit Current(Isc)  125mA
Open  Circuit Voltage (Voc)  4.8V
Optimized Cell   Efficiency (ƞ)  20%
Power Tolerance  ±5%
Dimensions  60x60x2.8MM

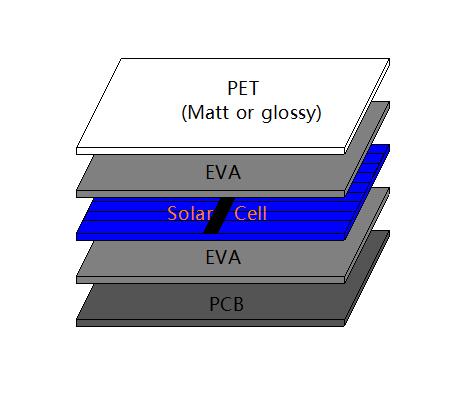

Layout of the PET laminated solar panel

Highlights:
*UV resistance solar panel
*Humidity resistance
*Scratch resistance
*Consistent textured surface
*Attractive appearance

Low voltage PET laminated solar panel consisting of UV resistance PET, EVAs, Solar cell and FR-4 PCB.
Life time of PET laminated solar cell will be more than 3 years, it is waterproof and resistant to all outdoor conditions, suitable for solar outdoor lights and solar education kits.
