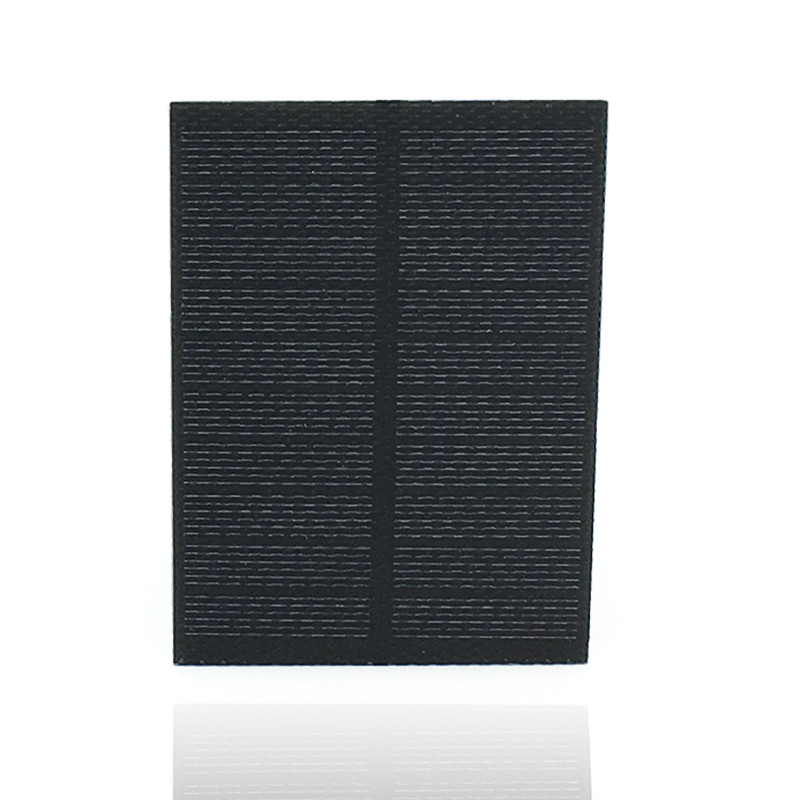

6V 1.1W ETFE laminated solar panel for GPS trackers
Specifications
Nominal Peak Power (Pm) |
1.1W |
Maximum Power Voltage(Vmp) |
6V |
Maximum Power Current(Imp) |
183mA |
Short Circuit Current (Isc) |
194mA |
Open Circuit Voltage (Voc) |
7.2V |
Optimized Cell Efficiency (ƞ) |
21% |
Power Tolerance |
±5% |
Dimensions |
110x80x2.8MM |
Net Weight |
35 Grams |
Standard Test Condition |
AM1.5 1000W/㎡ 25℃ |
Processing
ETFE laminated
Solar cell
High efficiency 21% Mono Crystalline 156x156mm solar cell
Limits
Working temperature : -40ºC to +80ºC
Applications
ETFE solar panel powered GPS tracker provides tracking and relays critical information for containers, vessels, trailers, buoys and barges. This self-contained device uses solar-powered technology to self-charge, allowing sensors to report day and night while delivering more messages over a longer lifetime.
Compared to regular battery powered GPS tracking devices, the ETFE solar powered tracking unit will be more reliable, longer lasting, and safer.
