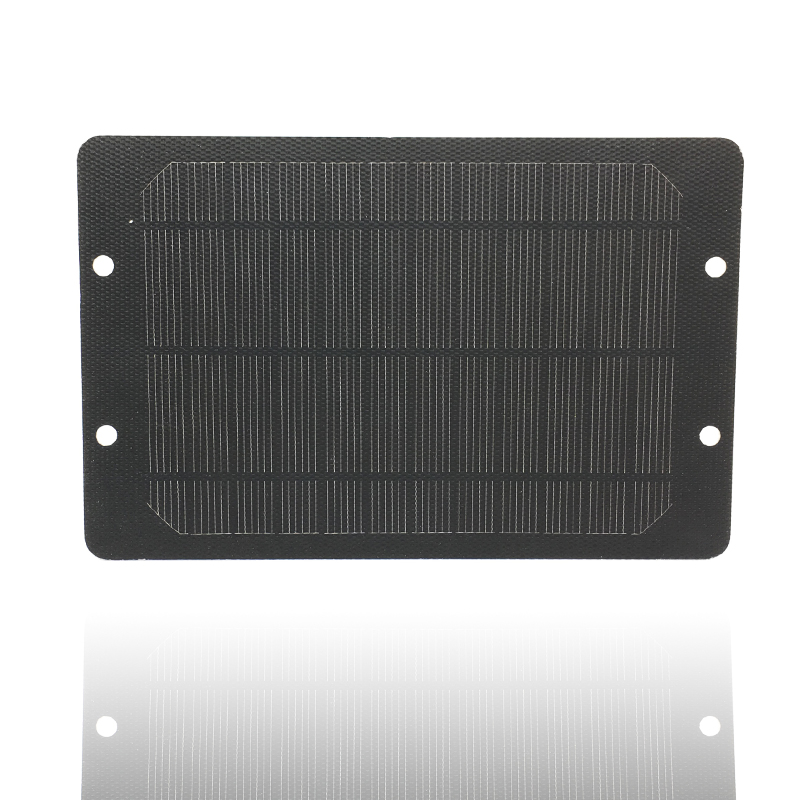

6V 6W ETFE laminated solar panel for shared bikes or social bicycles
Specifications
|
Nominal Peak Power (Pm) |
6W |
|
Maximum Power Voltage(Vmp) |
6V |
|
Maximum Power Current(Imp) |
1000mA |
|
Short Circuit Current (Isc) |
1060mA |
|
Open Circuit Voltage (Voc) |
7.2V |
|
Optimized Cell Efficiency (ƞ) |
20% |
|
Power Tolerance |
±5% |
|
Dimensions |
270x175x2.8MM |
|
Net Weight |
208 Grams |
|
Standard Test Condition |
AM1.5 1000W/㎡ 25℃ |
Processing
ETFE laminated
Solar cell
High efficiency Mono Crystalline 156x156mm solar cell
Limits
Working temperature : -40ºC to +80ºC
Applications

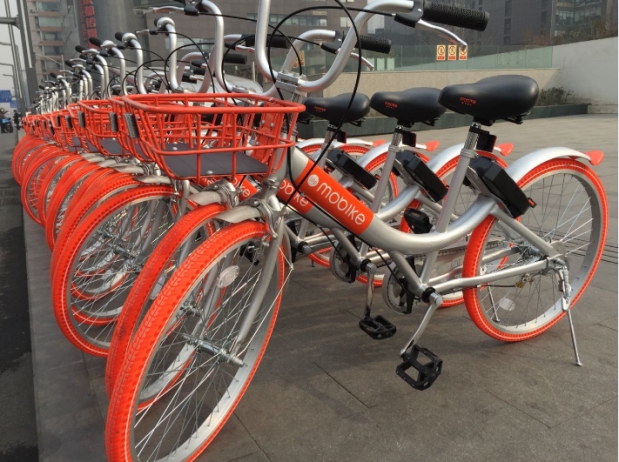

Shared bicycles has been integrated with ETFE solar panels since 2017. With this high durable quality solar panel, it can help to charge the battery to power the satellite positioning and mobile communication systems.
More and more outdoor products will be built in batteries which required mobile energy to power them. The ETFE solar panel will be a priority solution as a clean energy sourcing because of its unique advantages durability, free maintenance, extremely cost effective to buy and install.
