Huaxu Energy manufactures small and medium size solar panels to generate sustainable power for your portable electric power and battery charging applications.

Incorporating epoxy resin encapsulated solar cells, PET laminated solar cells and folding solar cells, the power packs will provide an excellent choice for applications that require lightweight, flexible, durable, clean power.

With more than 10 years experience, we deeply understand what customer’s requirements.

Huaxu Energy will be always you RELIABLE supplier of solar panels.

·PET solar panel
·Epoxy solar panel
·Glass solar panel
·ETFE solar panel
·Flexible solar panel

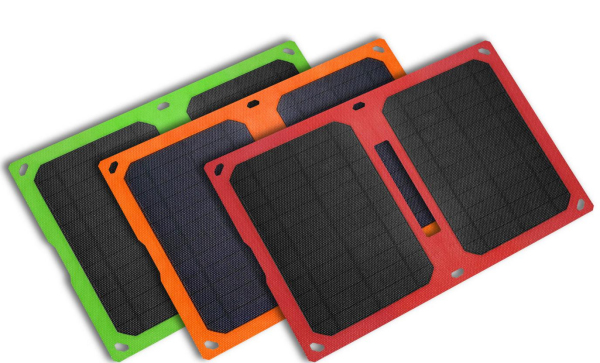

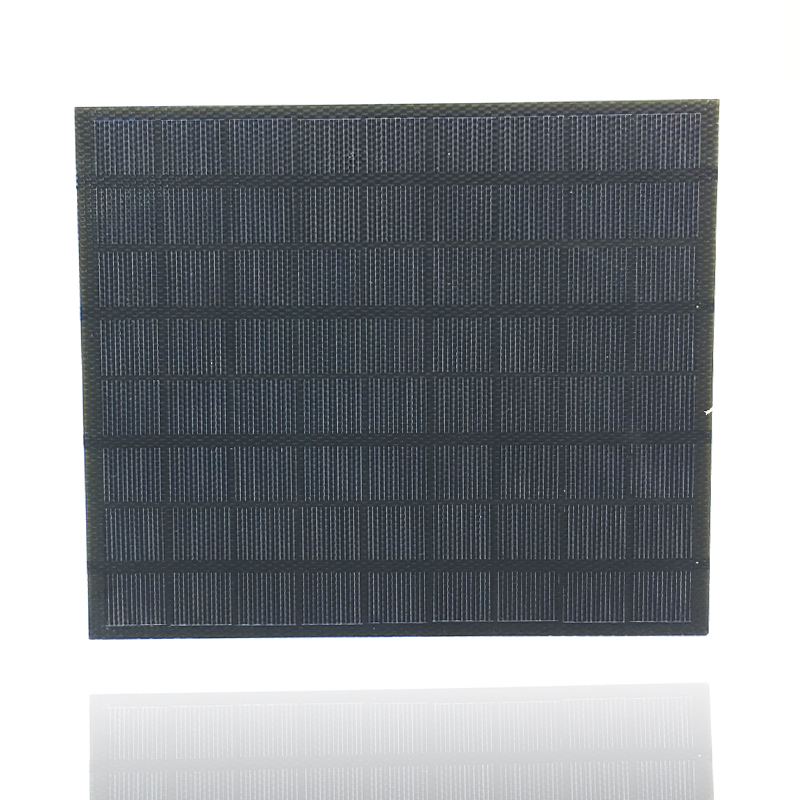

18V 6W ETFE solar panel

18V 6W ETFE laminated solar panel for folding solar charger



Specifications

Nominal Peak Power (Pm)

6W

Maximum Power Voltage(Vmp)

18V

Maximum Power Current(Imp)

334mA

Short  Circuit Current (Isc)

355mA

Open Circuit Voltage (Voc)

21.6V

Optimized Cell  Efficiency (ƞ)

20%

Power Tolerance

±5%

Dimensions

160x220x2.8MM

Net Weight

160 Grams

Standard Test Condition

AM1.5 1000W/25

Manufacturing Processing

ETFE laminated



Solar cell

High efficiency Mono Crystalline 156x156mm solar cell

Limits

Working temperature : -40ºC to +80ºC


Applications

The choice of materials that will cover the solar cells is the most important aspect in ensuring the lifespan and the mechanical properties of the panel. Here is one of the most widespread material called ETFE film. Which guarantee a high durability of the product for meet strict resistance requirements like sea side. While trying to preserve the flexibility and compactness of the panel, a ETFE outer protective layer is a better option.

ETFE is also self-cleaning (due to its nonstick surface) and recyclable. ETFE has an approximate tensile strength of 42 MPa (6100 psi), with a working temperature range of 185°C to +150°C. ETFE films are resistant to ultraviolet light.



With above advantages like durability, self-cleaning, high light transmission and UV resistance, the folding solar charger can give consistent power to charge your mobile phones or other electronic devices without worrying of the lifespan.

"To be your RELIABLE solar panel supplier"
