Huaxu Energy manufactures small and medium size solar panels to generate sustainable power for your portable electric power and battery charging applications.

Incorporating epoxy resin encapsulated solar cells, PET laminated solar cells and folding solar cells, the power packs will provide an excellent choice for applications that require lightweight, flexible, durable, clean power.

With more than 10 years experience, we deeply understand what customer’s requirements.

Huaxu Energy will be always you RELIABLE supplier of solar panels.
·PET solar panel
·Epoxy solar panel
·Glass solar panel
·ETFE solar panel
·Flexible solar panel

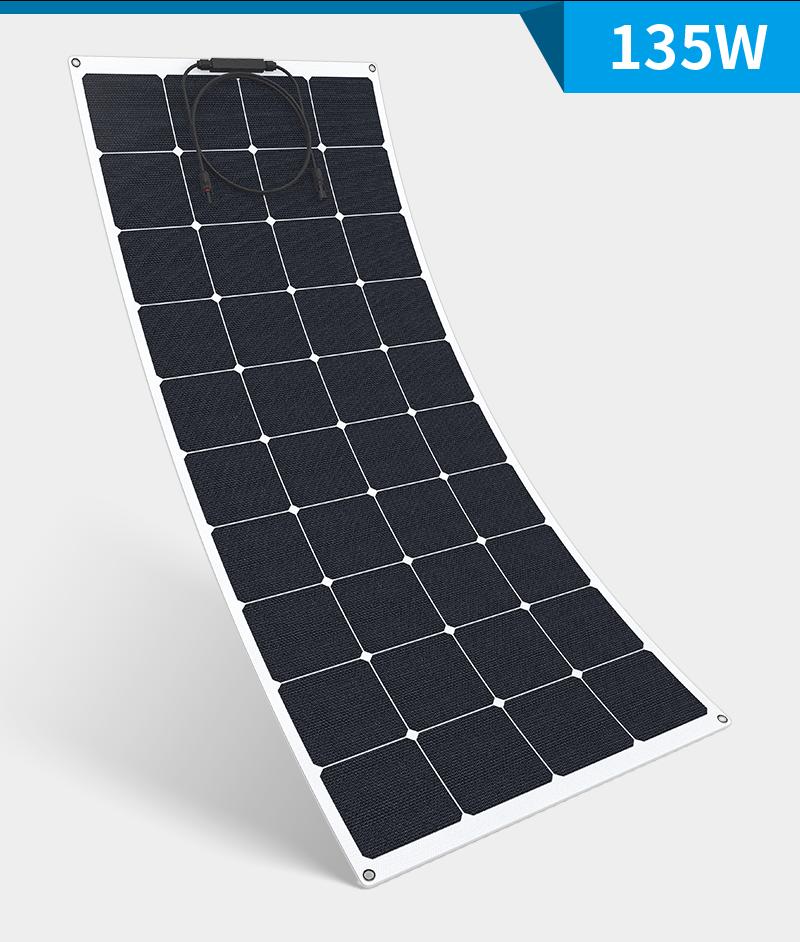

135W flexible solar panel

135W 22.8V ETFE Salt Spray Corrosion Resistance Decent Semi Flexible Solar Panel

Specification

Model Power efficiency Vmp Voc Imp Isc Size(mm) Weight(kg)
HX-20EF 20W 23% 20V 25V 1.00A 1.05A 460*290*3.8 0.5
HX-40EF 40W 23% 20V 25V 2.00A 2.1A 570*410*3.8 0.9
HX-50EF 50W 23% 18V 22.5V 2.77A 2.91A 570*535*3.8 1.25
HX-80EF 80W 23% 20V 25V 4.00A 4.2A 830*535*3.8 1.65
HX-110EF 110W 23% 18.5V 22.7V 5.94A 6.24A 1060*535*3.8 2.0
HX-120EF 120W 23% 20.8V 25V 5.76A 6.05A 1185*535*3.8 2.3
HX-135EF 135W 23% 22.8V 27.3V 5.92A 6.21A 1320*535*3.8 2.7
HX-170EF 170W 23% 28.5V 34.2V 5.96A 6.26A 1320*660*3.8          3.0
HX-200EF 200W 23% 34.2V 41V 5.84A 6.14A 1320*780*3.8 3.6
